ACSS for UPZ RC10 installation question

Post by slayer » Tuesday 21 February 2017, 16:39

Hi all,

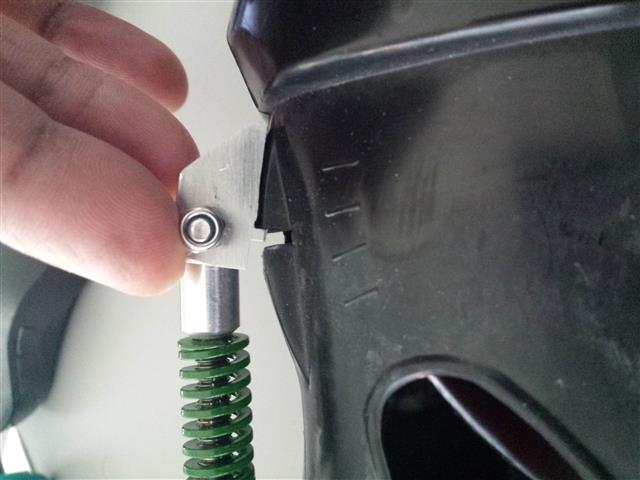

When I place the bottom piece against the slot on the boot, as per the picture, in this area, the boot surface not flat, but a curve. Do I need to sand it flat? It is not mentioned in the PDF, but the video shows this area sanded down a bit (i think, picture is not that sharp).

(sorry, the picture comes out upside down)
ACSS_q (Small).jpg
ACSS_q (Small).jpg (57.64 KiB) Viewed 2572 times
cheers,
Slayer
Swoard Dual 175, UPZ RC10 boots, F2 Race Titanium bindings.

User avatar
Capykiller
Rank 5
Rank 5
Posts: 123
Joined: Sunday 21 October 2012, 2:04
Location: Essen

Re: ACSS for UPZ RC10 installation question

Post by Capykiller » Tuesday 21 February 2017, 17:15

Hi Slayer,
as you mentioned in your post I sandpaper the part a bit to make the bottom piece fit.

All the best from germany

https://youtu.be/4exQTkBn-kE
SWOARD Extremecarver Pro 2 168H, SWOARD Bindung Redline, UPZ RC 10 mit ACSS

slayer
Rank 4
Rank 4
Posts: 96
Joined: Friday 17 January 2014, 1:34

Re: ACSS for UPZ RC10 installation question

Post by slayer » Tuesday 21 February 2017, 17:55

Thanks Capykiller.

Is it critical how much to take off, or do I just make the ridge fit right-angles to the boot? Would you be able to show a closeup?

Sorry to be 'precious' - I haven't yet drilled holes in expensive boots! :-)

I better go to my storage to find my Dremel! One thing about living in Swiss rented accomodation compared to the UK - toolbox is a lot smaller!

EDIT - now I watched the video again, and turned on the (indecipherable) auto-translate captions, I can see you mention shaving off some plastic. Need to learn more German! :-)

cheers,
Slayer.
Swoard Dual 175, UPZ RC10 boots, F2 Race Titanium bindings.

User avatar
Arnaud
Administrator
Administrator
Posts: 3102
Joined: Friday 24 January 2003, 9:00
Location: Paris - IdF 95

Re: ACSS for UPZ RC10 installation question

Post by Arnaud » Tuesday 21 February 2017, 18:18

Hi Colin
You cut a little bit the shape to get it flat
Swoard EC Pro 168H - 168H G1- Dual 168 - Donek Axis 172
