ACSS - Advanced Carving Spring System for Deeluxe
Moderators: fivat, rilliet, Arnaud, nils
Re: ACSS - Advanced Carving Spring System for Deeluxe

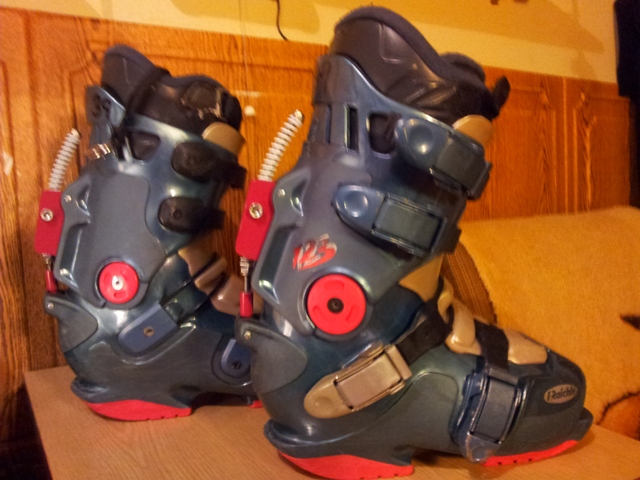

My acss arrived & mounted.
Custom color combination looks great - thanks Rafal
Custom color combination looks great - thanks Rafal
- Attachments
-
- IMG_1413.JPG (123.08 KiB) Viewed 12248 times
- Abrax
- Swoard team
- Posts: 422
- Joined: Sunday 25 November 2007, 19:12
- Location: Cracow, Poland
- Contact:
Re: ACSS - Advanced Carving Spring System for Deeluxe
Check this ->
The most amazing thing here is to see these badass combinations with different boots and colors. Tomo, your ACSS looks almost stock! Fantastic!
The most amazing thing here is to see these badass combinations with different boots and colors. Tomo, your ACSS looks almost stock! Fantastic!
www.carvingskills.com
580km in 3 hours and 5 minutes completely legal!!! I love german highways!!!
580km in 3 hours and 5 minutes completely legal!!! I love german highways!!!
- christian61
- Rank 5
- Posts: 317
- Joined: Friday 17 November 2006, 19:40
- Location: Northern Bavaria, Germany
Re: ACSS - Advanced Carving Spring System for Deeluxe
Hi folks,
I own a pair of Raiche 223s and when mounting the ACSS I noticed that theres is not really enough room for the "special screw" to fix the lower part of the ACSS to the shell. With my boot, the screw can cause the shell to get stuck in its forward position.
Shortening the "thorns" did not help. I assume, this problem only occurs with old Raichle boots like my 223s.
So I found a different way to fix the lower part of the ACSS.
Material needed: 2 aluminium bolts (thickness 3 mm, length 44 mm)
Warning: Do not replace the original bolts! They are made from steel - aluminium would not be strong enough!

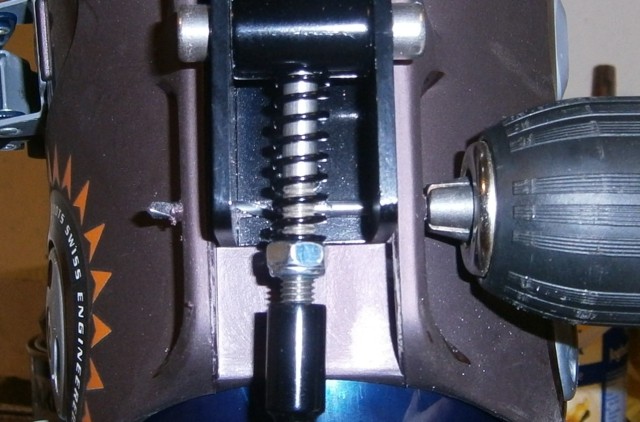

First I mounted the ACSS (only upper bolt!) and drilled a 3mm hole through the shell and the ACSS (begin with 2mm drill, then 3mm) Here you see the position of the hole: (to be continued in next message)
I own a pair of Raiche 223s and when mounting the ACSS I noticed that theres is not really enough room for the "special screw" to fix the lower part of the ACSS to the shell. With my boot, the screw can cause the shell to get stuck in its forward position.
Shortening the "thorns" did not help. I assume, this problem only occurs with old Raichle boots like my 223s.
So I found a different way to fix the lower part of the ACSS.
Material needed: 2 aluminium bolts (thickness 3 mm, length 44 mm)
Warning: Do not replace the original bolts! They are made from steel - aluminium would not be strong enough!
First I mounted the ACSS (only upper bolt!) and drilled a 3mm hole through the shell and the ACSS (begin with 2mm drill, then 3mm) Here you see the position of the hole: (to be continued in next message)
SWOARD EXTREMECARVER GEN4 168s + 161m, Deeluxe 225 + ACSS
- christian61
- Rank 5
- Posts: 317
- Joined: Friday 17 November 2006, 19:40
- Location: Northern Bavaria, Germany
Re: ACSS - Advanced Carving Spring System for Deeluxe
...
Then I widened the hole in the ACSS, using a 3.5mm drill. Then I prepared the aluminium bolts. 3mm Aluminium rods are rather cheap.
I sawed off 2 pieces, each 44mm long.

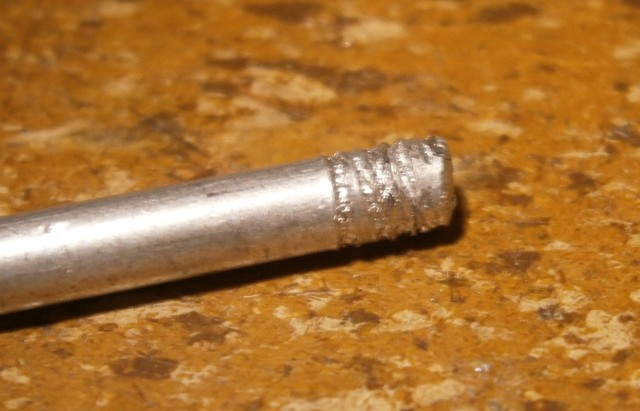

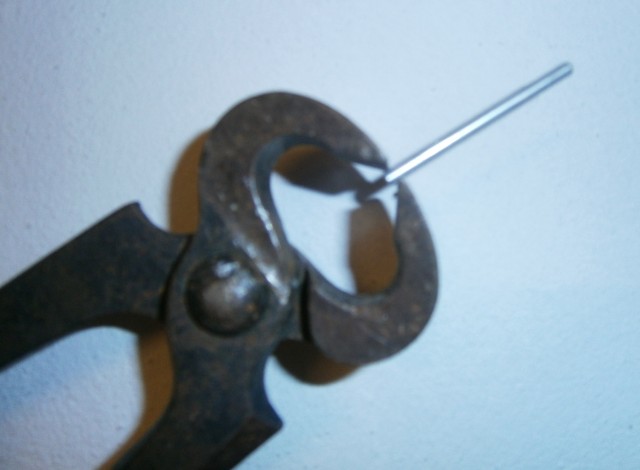

I made ridges into one end of the bolts, like this: Afterwards, the bolts look like this (to prevent them from slipping out): Finally drive the bolts in, just like the original upper bolts.
I have not tested the system on snow yet, and I don't know if there are any disadvantages.
The second photo (bolt 003.jpg) shows what it looks like.
Comments welcome!
Christian61
Then I widened the hole in the ACSS, using a 3.5mm drill. Then I prepared the aluminium bolts. 3mm Aluminium rods are rather cheap.
I sawed off 2 pieces, each 44mm long.
I made ridges into one end of the bolts, like this: Afterwards, the bolts look like this (to prevent them from slipping out): Finally drive the bolts in, just like the original upper bolts.
I have not tested the system on snow yet, and I don't know if there are any disadvantages.
The second photo (bolt 003.jpg) shows what it looks like.
Comments welcome!
Christian61
SWOARD EXTREMECARVER GEN4 168s + 161m, Deeluxe 225 + ACSS
- Abrax
- Swoard team
- Posts: 422
- Joined: Sunday 25 November 2007, 19:12
- Location: Cracow, Poland
- Contact:
Re: ACSS - Advanced Carving Spring System for Deeluxe
Nice!
I can recommend this mod! It will definitely work good!
The point is to generally keep the U-shape part from moving / rotating .
GOOD!
I can recommend this mod! It will definitely work good!
The point is to generally keep the U-shape part from moving / rotating .
GOOD!
www.carvingskills.com
580km in 3 hours and 5 minutes completely legal!!! I love german highways!!!
580km in 3 hours and 5 minutes completely legal!!! I love german highways!!!
- christian61
- Rank 5
- Posts: 317
- Joined: Friday 17 November 2006, 19:40
- Location: Northern Bavaria, Germany
Re: ACSS - Advanced Carving Spring System for Deeluxe
I tested the system for 4 days. Works wonderful, no problems at all.
Everything seems to move more smoothly now.
I also have the impression that the ACSS makes it easier to sit down on the back foot just before entering the turn.
Thanks again, Abrax!
Everything seems to move more smoothly now.
I also have the impression that the ACSS makes it easier to sit down on the back foot just before entering the turn.
Thanks again, Abrax!
SWOARD EXTREMECARVER GEN4 168s + 161m, Deeluxe 225 + ACSS
Re: ACSS - Advanced Carving Spring System for Deeluxe
Hi

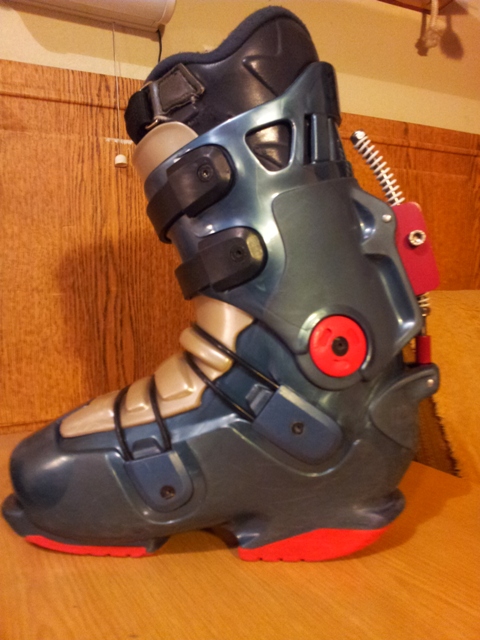

The snowboard is prepared, bindings mounted, ACSS also ready in my old Raichle ...
... and now, I wait for the snow...
mirek
The snowboard is prepared, bindings mounted, ACSS also ready in my old Raichle ...
... and now, I wait for the snow...
mirek
Like "joemzl" and others - extreme dreamer every day...
- Abrax
- Swoard team
- Posts: 422
- Joined: Sunday 25 November 2007, 19:12
- Location: Cracow, Poland
- Contact:
Re: ACSS - Advanced Carving Spring System for Deeluxe
Seems that the color suits well I like it!
www.carvingskills.com
580km in 3 hours and 5 minutes completely legal!!! I love german highways!!!
580km in 3 hours and 5 minutes completely legal!!! I love german highways!!!
- christian61
- Rank 5
- Posts: 317
- Joined: Friday 17 November 2006, 19:40
- Location: Northern Bavaria, Germany
Re: ACSS - Advanced Carving Spring System for Deeluxe
Hi Mirek,
it looks like you did not screw the upper screws very far downwards. This allows VERY far forward movement.
I made the experience that NOT limiting forward movement can be dangerous for your ankles, especially when riding on fresh snow with moguls.
Therefore I screwed the upper screws down about 1.3 cm.
But of course everybody's feet (and leg muscles!) are different. Anyway, it is great that Abrax's ACSS can be tuned so easily.
Christian
it looks like you did not screw the upper screws very far downwards. This allows VERY far forward movement.
I made the experience that NOT limiting forward movement can be dangerous for your ankles, especially when riding on fresh snow with moguls.
Therefore I screwed the upper screws down about 1.3 cm.
But of course everybody's feet (and leg muscles!) are different. Anyway, it is great that Abrax's ACSS can be tuned so easily.
Christian
SWOARD EXTREMECARVER GEN4 168s + 161m, Deeluxe 225 + ACSS
- Abrax
- Swoard team
- Posts: 422
- Joined: Sunday 25 November 2007, 19:12
- Location: Cracow, Poland
- Contact:
Re: ACSS - Advanced Carving Spring System for Deeluxe
Christian, you are talking about the thing which is very important and which was discussed before in this topic. I do have the higher nut about 1cm from the top, but my achilee is very well stretched so I can go as far as my ankle lets me to. Not everybody will have it stretched that much, so please start from the screwed position and unscrew to get a better progress.
www.carvingskills.com
580km in 3 hours and 5 minutes completely legal!!! I love german highways!!!
580km in 3 hours and 5 minutes completely legal!!! I love german highways!!!
Re: ACSS - Advanced Carving Spring System for Deeluxe
Hi Christian!
Of course you're right!
At beginning ( a few first ride) I tightened the nut about 1,0-1,5 cm - then I make the appropriate adjustments.
I greet,
mirek
Of course you're right!
At beginning ( a few first ride) I tightened the nut about 1,0-1,5 cm - then I make the appropriate adjustments.
I greet,
mirek
Like "joemzl" and others - extreme dreamer every day...
Re: ACSS - Advanced Carving Spring System for Deeluxe
Hi guys!
Today I had some time and I did the home test ACSS.
ACSS for Raichle/Deeluxe - test
Frosts are coming to us – maybe for a one week I will be able to ride a snowboard...
mirek
Today I had some time and I did the home test ACSS.
ACSS for Raichle/Deeluxe - test
Frosts are coming to us – maybe for a one week I will be able to ride a snowboard...
mirek
Like "joemzl" and others - extreme dreamer every day...
- Alexander
- Rank 0
- Posts: 3
- Joined: Tuesday 15 March 2011, 9:31
- Location: Sakhalin Island, Russia
- Contact:
Re: ACSS - Advanced Carving Spring System for Deeluxe
Gents, good day!
Did somebody try to install this system on UPZ RC10?
I wonder if there is enough space to accomodate the rod and springs in the boot?
Did somebody try to install this system on UPZ RC10?
I wonder if there is enough space to accomodate the rod and springs in the boot?
- Abrax
- Swoard team
- Posts: 422
- Joined: Sunday 25 November 2007, 19:12
- Location: Cracow, Poland
- Contact:
Re: ACSS - Advanced Carving Spring System for Deeluxe
For UPZ installation please ask Arnaud.
I do not install the ACSS for Deeluxe/Raichle in UPZ. My system is not designed for this shell.
I do not install the ACSS for Deeluxe/Raichle in UPZ. My system is not designed for this shell.
www.carvingskills.com
580km in 3 hours and 5 minutes completely legal!!! I love german highways!!!
580km in 3 hours and 5 minutes completely legal!!! I love german highways!!!
- Alexander
- Rank 0
- Posts: 3
- Joined: Tuesday 15 March 2011, 9:31
- Location: Sakhalin Island, Russia
- Contact:
Re: ACSS - Advanced Carving Spring System for Deeluxe
Thanx, Abrax
I will sure ask Arnaud.
I saw some pictures flying in forums with previous ACSS 2011 modified for UPZ RC-10.
Will be interesting to hear feedbacks from users.
I will sure ask Arnaud.
I saw some pictures flying in forums with previous ACSS 2011 modified for UPZ RC-10.
Will be interesting to hear feedbacks from users.
