spring system for Raichle/Deeluxe

Post by rahan31 » Monday 15 October 2018, 17:11

Hi everybody

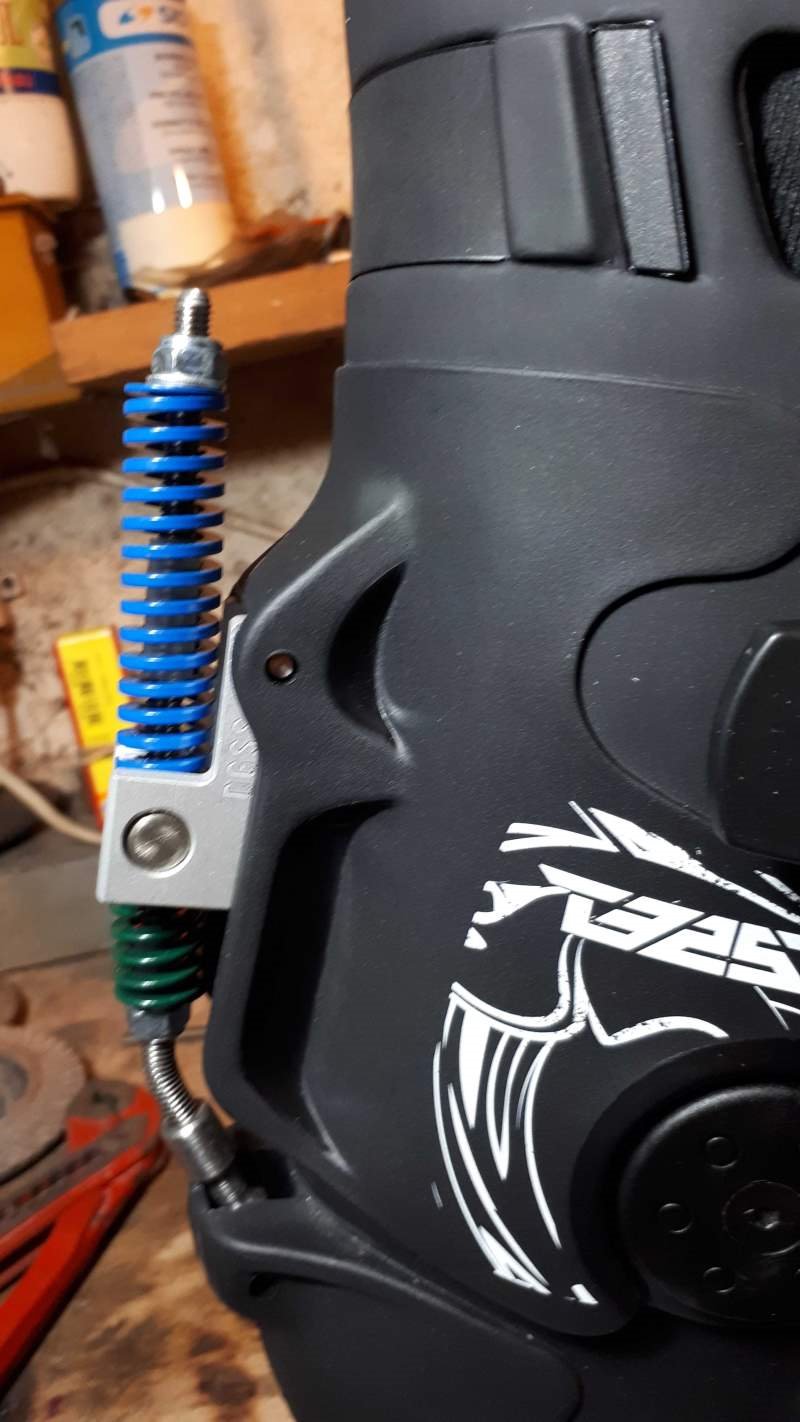

As I said I studied the case of Raichle/Deeluxe to integrate my low profile system, here is the result:


This is not plug and play as on the Atomic since it is necessary to machine the shells in three places, but the result is conclusive with a gain on the total length of the shoe:


We even win compared to the original 5 positions system (-6.5 mm)!

It is more complex and expensive than the usual systems of course (full stainless steel and precision machining) but the gain in length is at this price.
ECpro161M,F2,Raichle124+ACSS+Palau
SwellPanik Magistral175
Volkl Selecta163
SP Fastec,Burton DriverX

User avatar
drupi
Rank 4
Rank 4
Posts: 88
Joined: Wednesday 24 October 2012, 0:33

Re: spring system for Raichle/Deeluxe

Post by drupi » Friday 19 October 2018, 0:25

:mrgreen: :mrgreen: :mrgreen: :lol2: :lol2: :lol2: :lol2: :lol2: :lol2: :lol2: :lol2: :lol2: :lol2: :lol2: :lol2: :lol2: :lol2: :lol2:
Attachments
Dgss spring system 1.jpg
DGSS DEELUXE.RAICHLE.jpg
